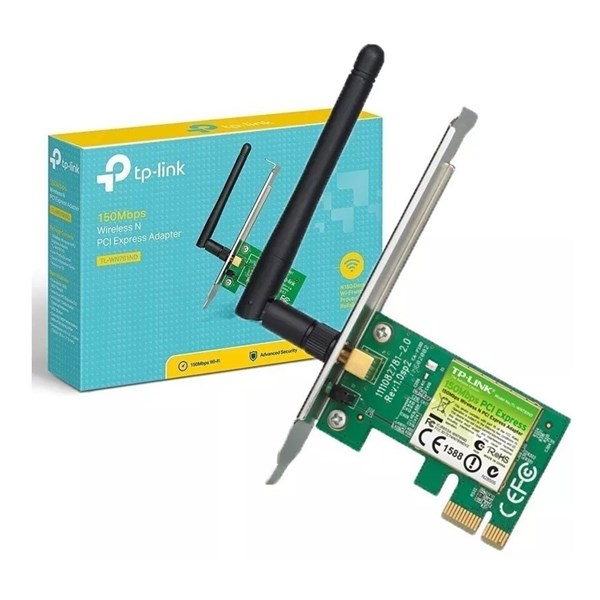

Card mạng không dây PCI Express TP-LINK TL-WN781ND 150Mbps

Chuẩn kết nối

PCI - Express 1x

Kích thước (W X D X H)

120.8 x 78.5 x 21.5mm

Antenna Type

Detachable Omni Directional (RP-SMA)

Antenna Gain

2dBi

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400-2.4835GHz

Signal Rate

11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

EIRP

<20dBm(EIRP)

Reception Sensitivity

130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Wireless Modes

Ad-Hoc / Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Certification

CE, FCC, RoHS

Package Contents

Wireless Adapter
Detachable Omni directional antenna
Resource CD
Quick Installation Guide

System Requirements

Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
